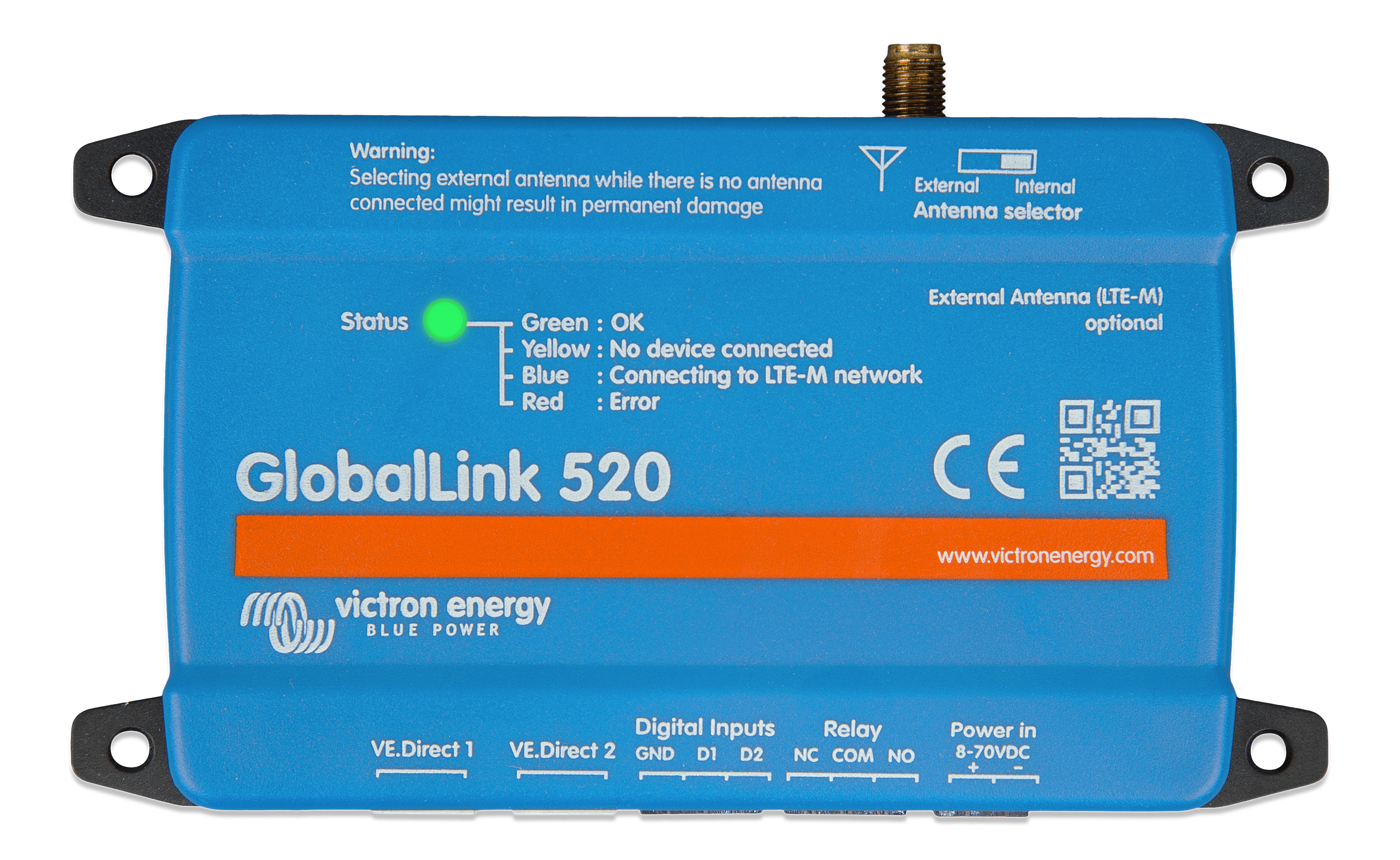

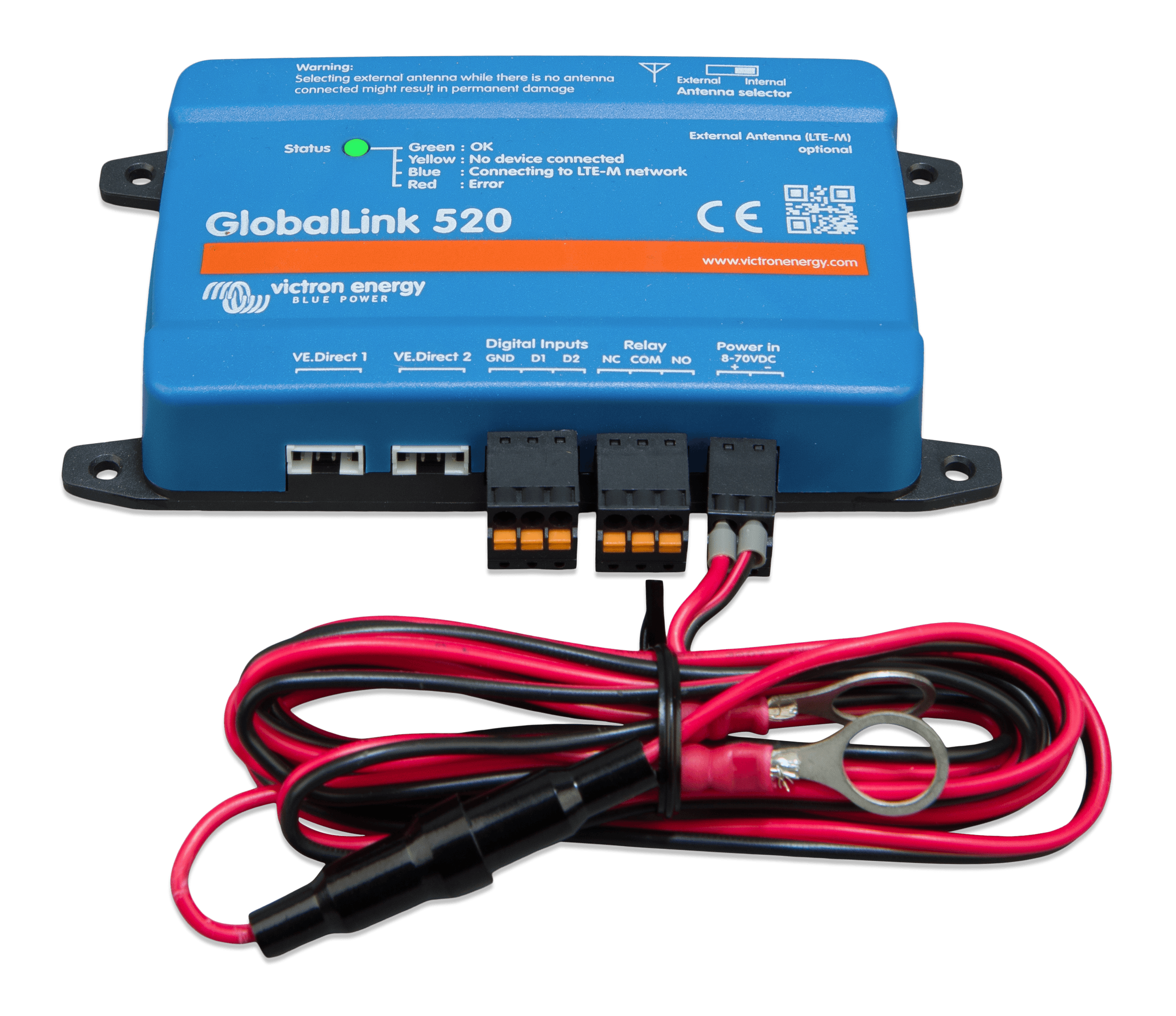

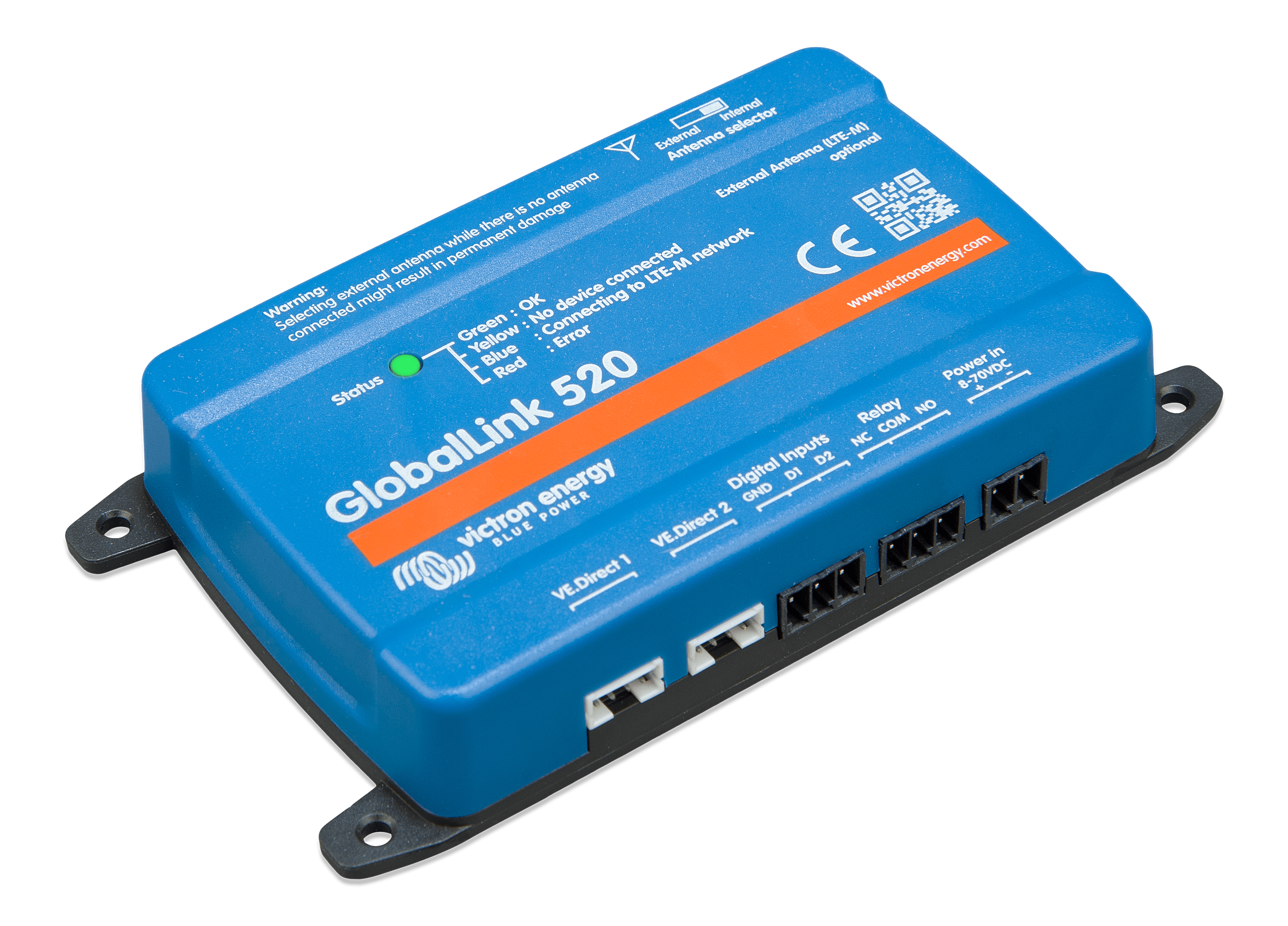

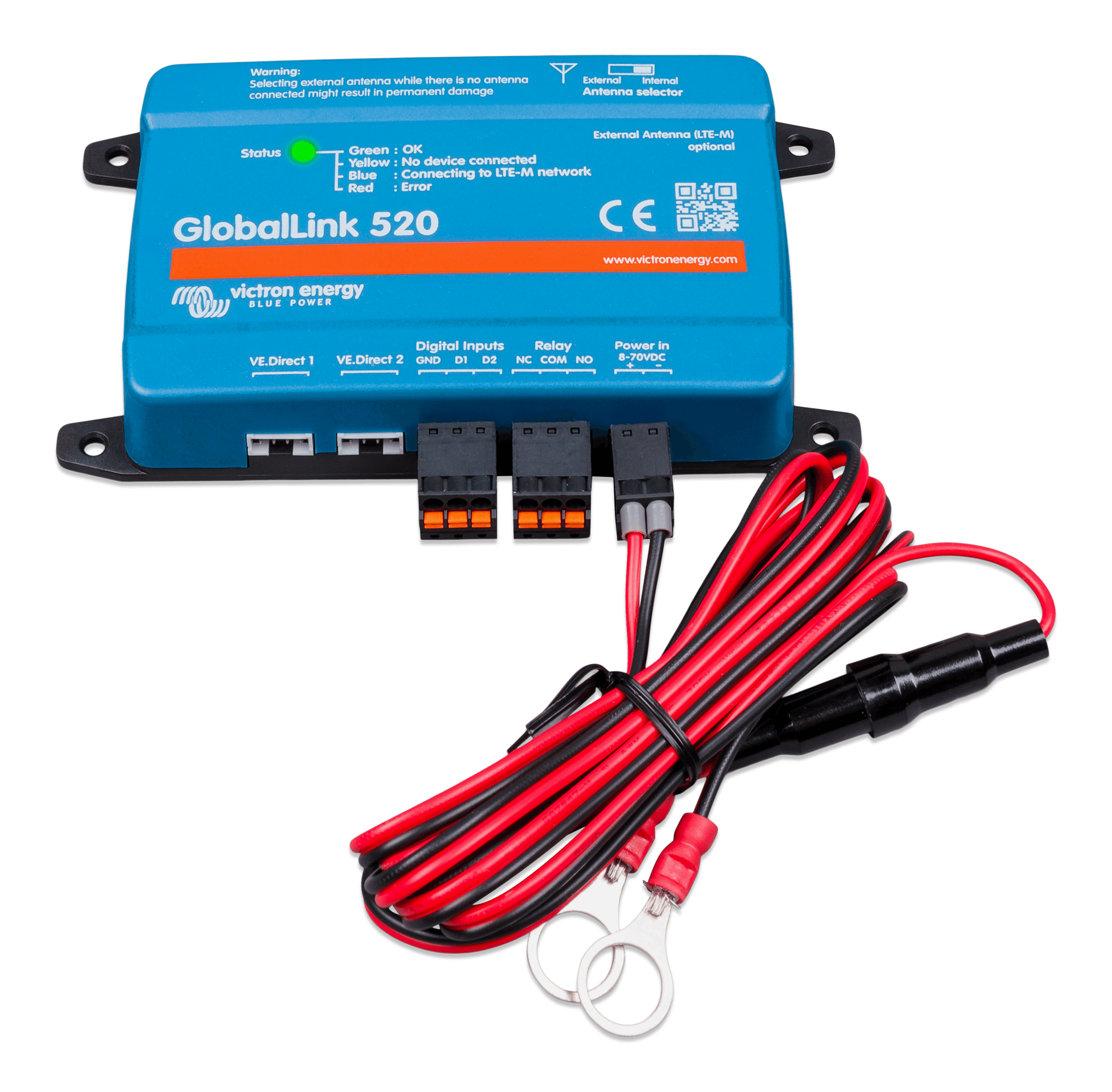

GlobalLink 520
We believe that having insight into your installation is a key factor in maintaining and operating your off-grid energy solutions. Off-grid should not mean off-line, so we have created the GlobalLink 520. This device will bring 4G LTE-M connectivity to all VE.Direct enabled devices without any monthly fees or subscriptions, for the first five years.
Year warranty
World-wide support
About this
product
We believe that having insight into your installation is a key factor in maintaining and operating your off-grid energy solutions. Off-grid should not mean off-line, so we have created the GlobalLink 520. This device will bring 4G LTE-M connectivity to all VE.Direct enabled devices without any monthly fees or subscriptions, for the first five years.
Global connectivity with 4G LTE-M
LTE-M is the abbreviation for LTE Cat-M1 or Long Term Evolution (4G), category M1. This cellular technology is designed to connect Internet of Things devices to existing 4G towers while using low energy. LTE-M does support handovers and roaming so it is possible to use this device in a moving vehicle like a campervan. Check the list in our GlobalLink 520 manual to see if LTE-M is officially confirmed to be available in your area. Coverage is increasing every week as local providers roll out support. Your purchase includes 5 years of connectivity, so there is no need to worry about purchasing a separate data bundle and SIM-card.
System monitoring & control

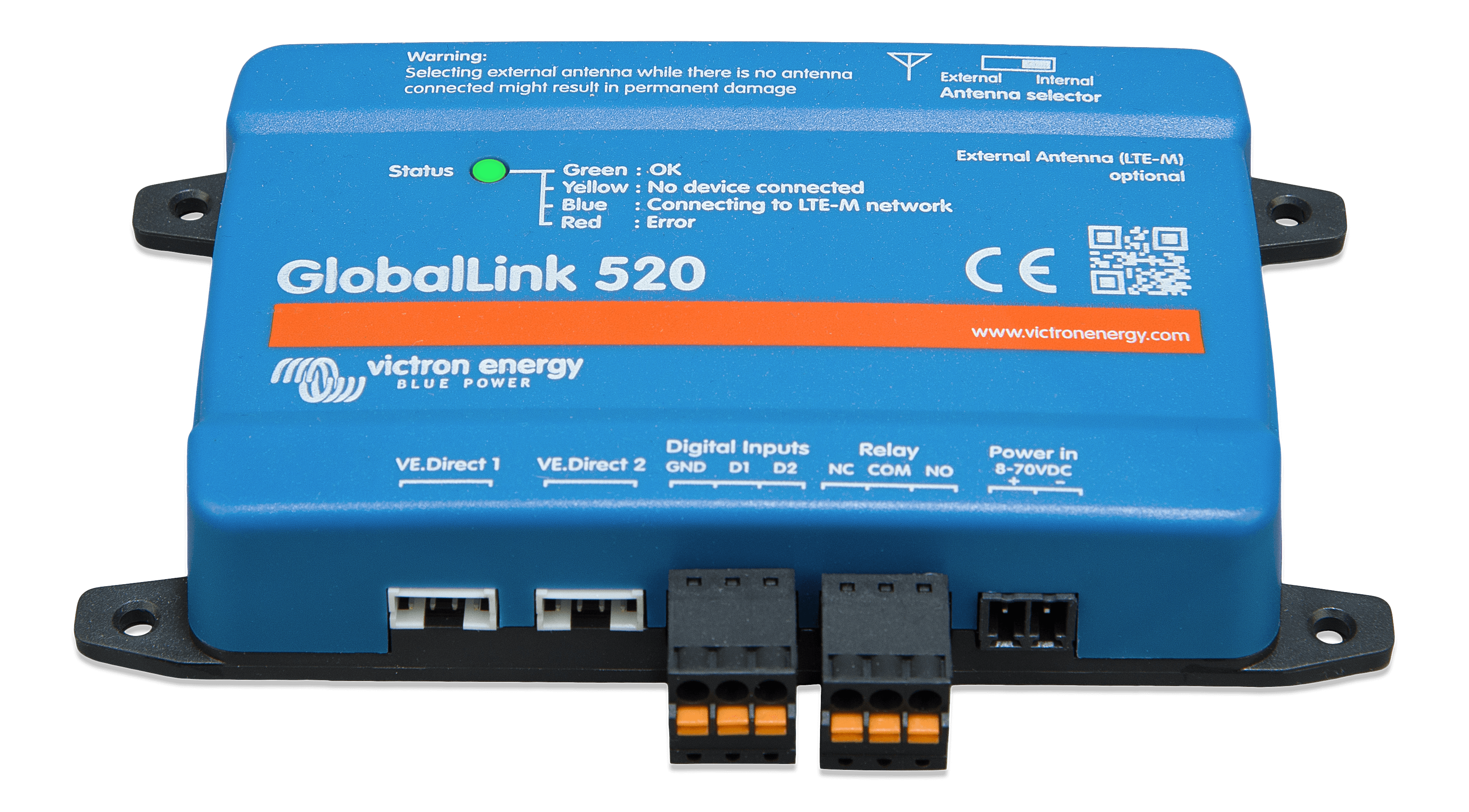

The GlobalLink 520 comes with two communication ports, which allows connecting up to two VE.Direct devices such as a BMV Battery Monitor and/or a MPPT Solar Charge Controller directly to VRM. Compatible Victron Smart products can be connected via BLE. With two digital inputs that also act as pulse counters and a remote controllable relay, it's a perfect solution to monitor and control your installation.
.png&w=3840&q=70)

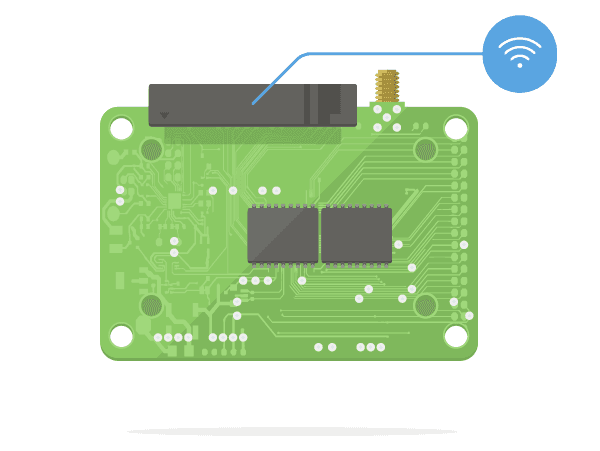

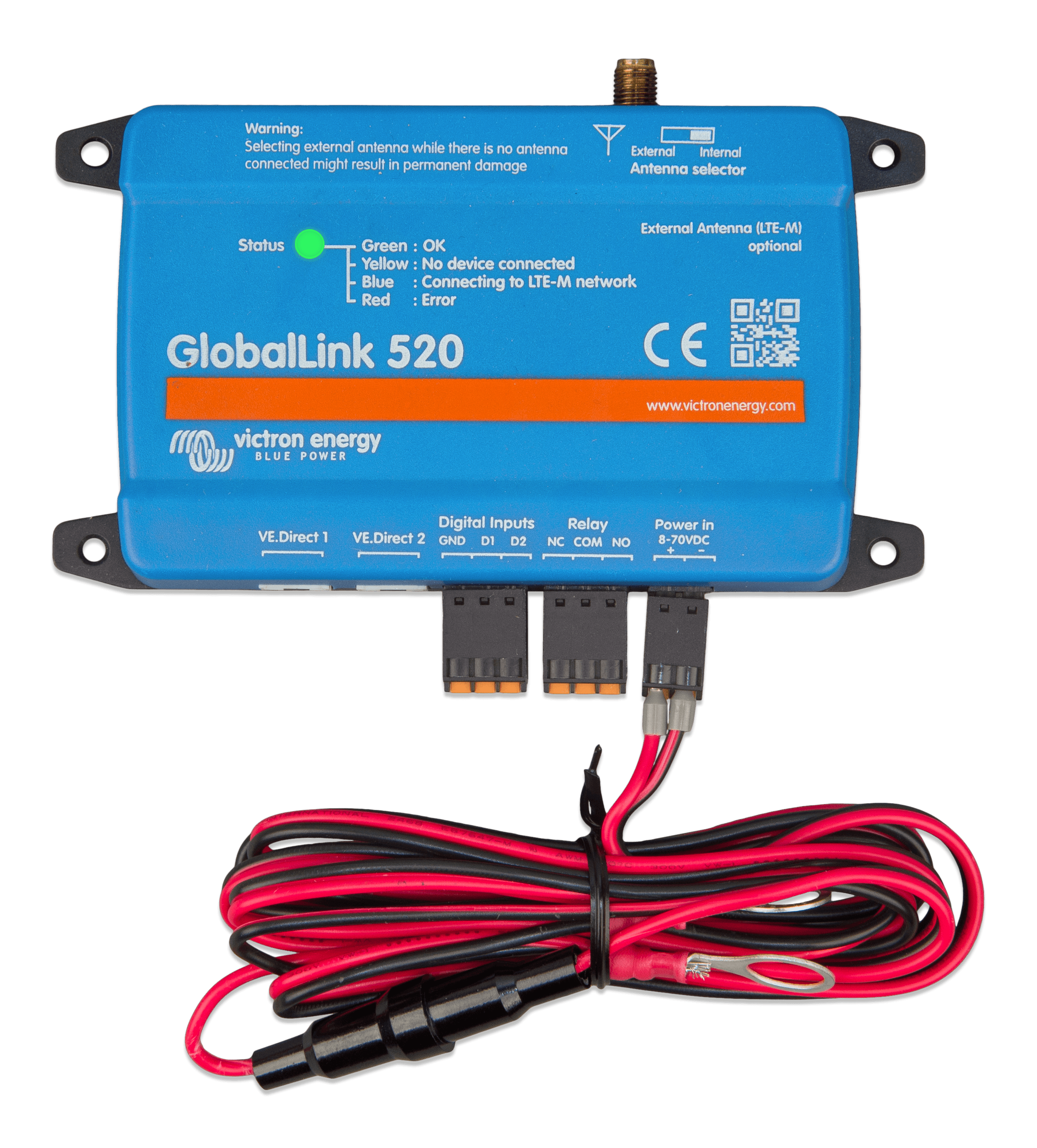

Antenna built in

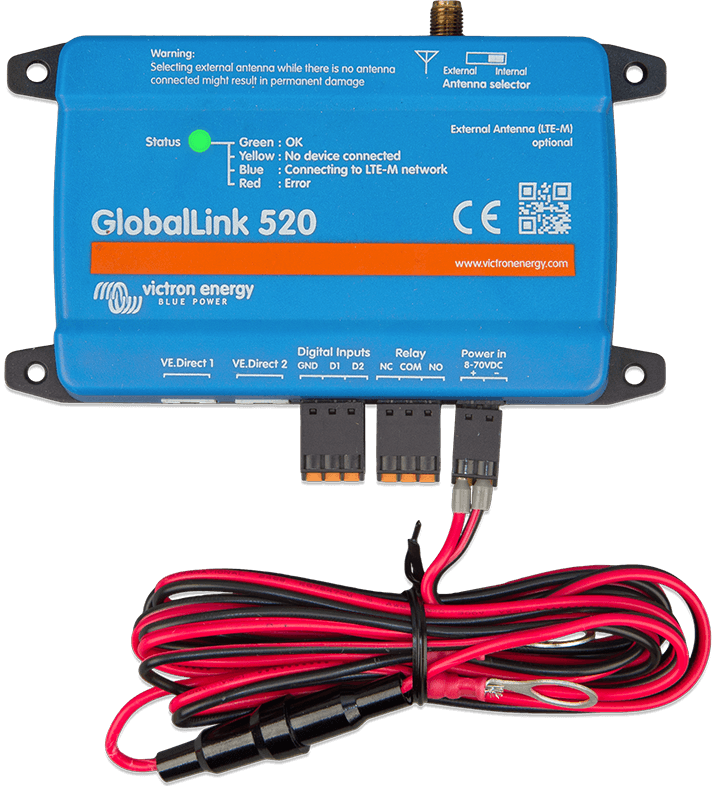

The GlobalLink 520 comes with a built-in antenna that is designed to work all around the globe. However if you require better reception or want to install your module in a utility van for example, it is also possible to mount an external antenna.

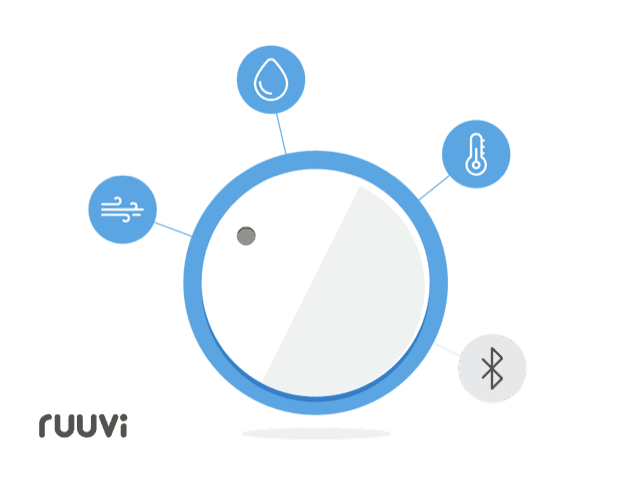

RuuviTag Support
The GlobalLink 520 now supports the RuuviTag temperature sensors. These battery powered sensors connect via BLE and are easy to setup via VictronConnect. All the data, like temperature, humidty and airpressure from the RuuviTag sensors, will directly be available in VRM.
Victron Remote Management
The online Victron Remote Management (VRM) portal provides you with access to your installation, from anywhere, at any time. In VRM you can check the status of your connected products, view detailed history graphs of your energy, generate detailed analytical reports, and even configure automatic alarms in case something goes wrong.
Downloads
and support
Datasheets
- GlobalLink 520.PDF
Manuals
- GlobalLink 520 (HTML5).HTML
- GlobalLink 520 (PDF).PDF
- VictronConnect Manual (HTML5).HTML
- VictronConnect Manual (PDF).PDF
Enclosure Dimensions
- GlobalLink 520 (3D).PDF
- GlobalLink 520.PDF
- GlobalLink 520 (stp)
- GlobalLink 520 (new design).PDF
- GlobalLink 520 (3D) new design.PDF
- GlobalLink 520 (stp) new design
High Quality Photos

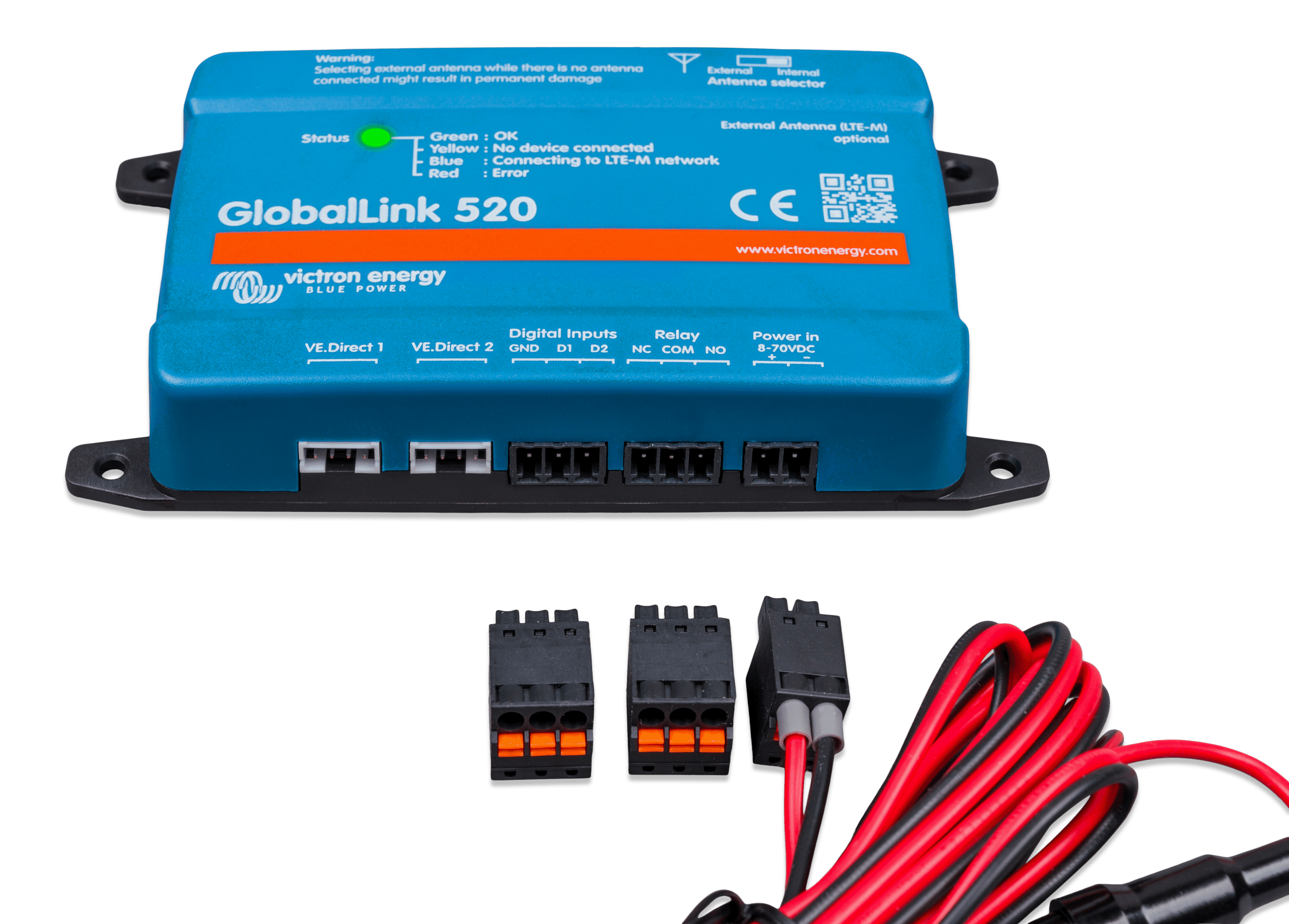

- Globallink 520 (conn side)
.PNG - Globallink 520 (connected)
.PNG - GlobalLink 520 (front-view)
.PNG - GlobalLink 520 (front-view1)
.PNG - GlobalLink 520 (left)
.PNG - GlobalLink 520 (right)
.PNG - GlobalLink 520 (top)
.PNG - GlobalLink 520 (top with cable)
.PNG
Videos

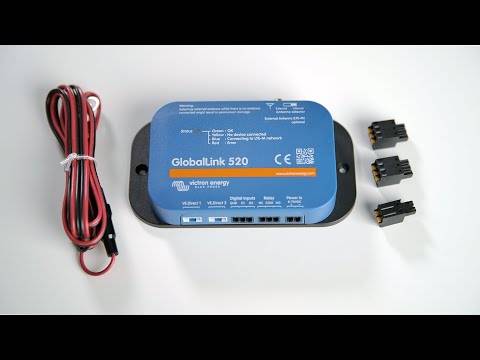

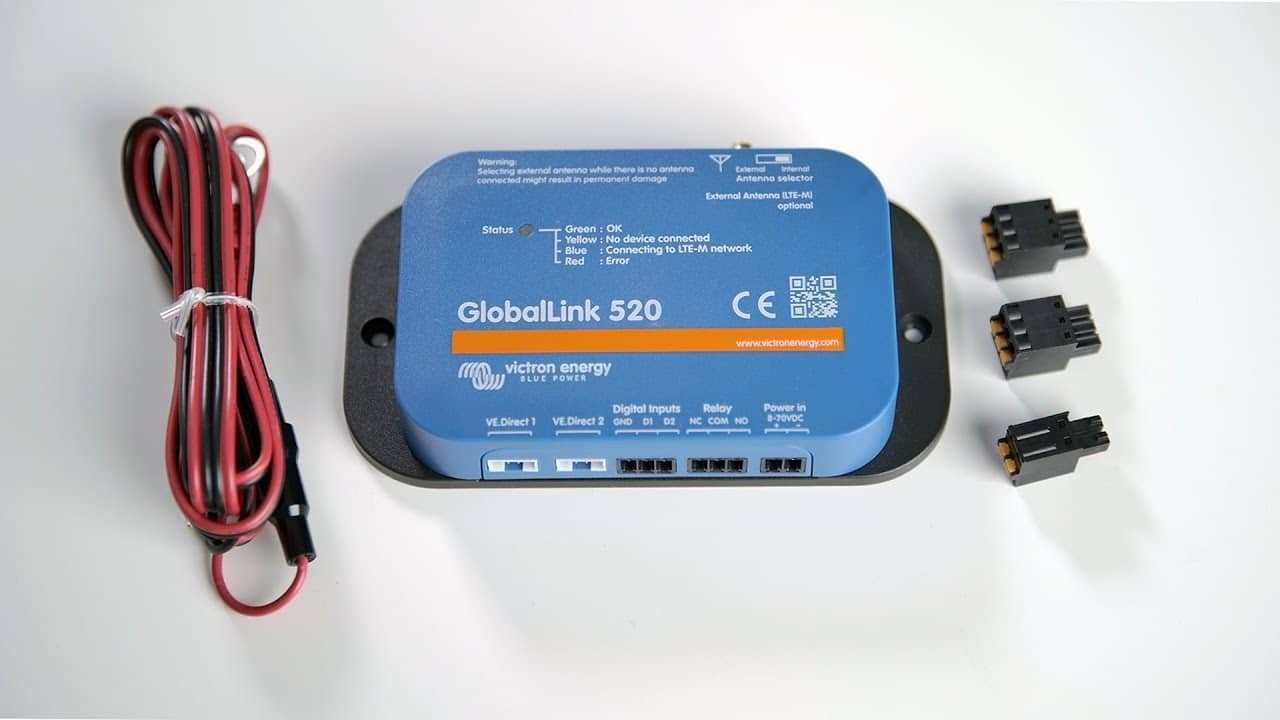

- GlobalLInk 520 - Upload Data to VRM using 4G
Certificates
- Certificate Automotive ECE R10-6 - GlobalLink 520.PDF
- ISO9001 certificate.PDF
- UK PSTI Statement of Compliance - Communication Centre/System monitoring.PDF
Promo Videos
- Brand video
- VRM - Remote Monitoring
Configuration and monitoring
VictronConnect
This pocket powerhouse app can do it all. Instantly see key monitoring data and manage devices with simple controls. Configure, check the history, analyse stored trends and more.
