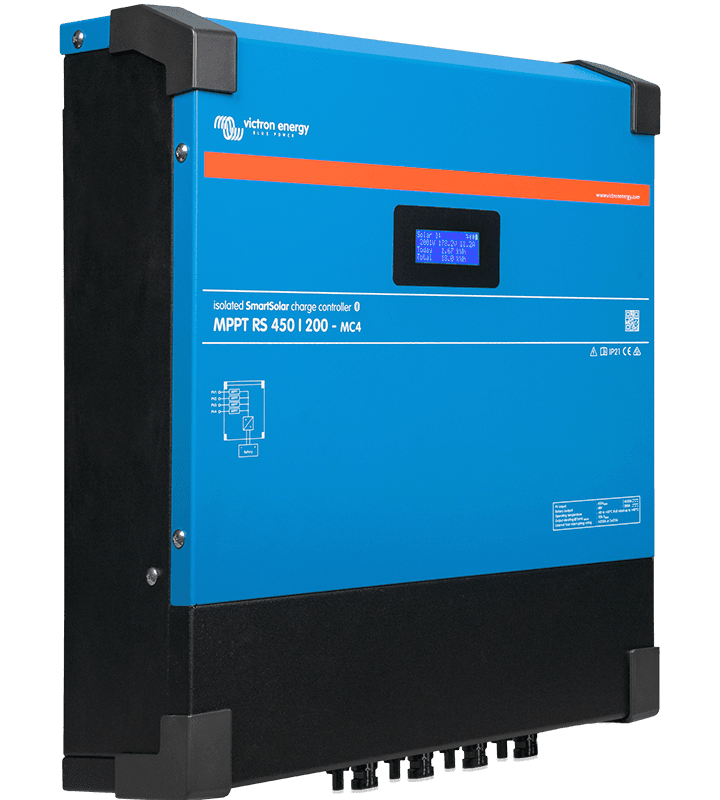

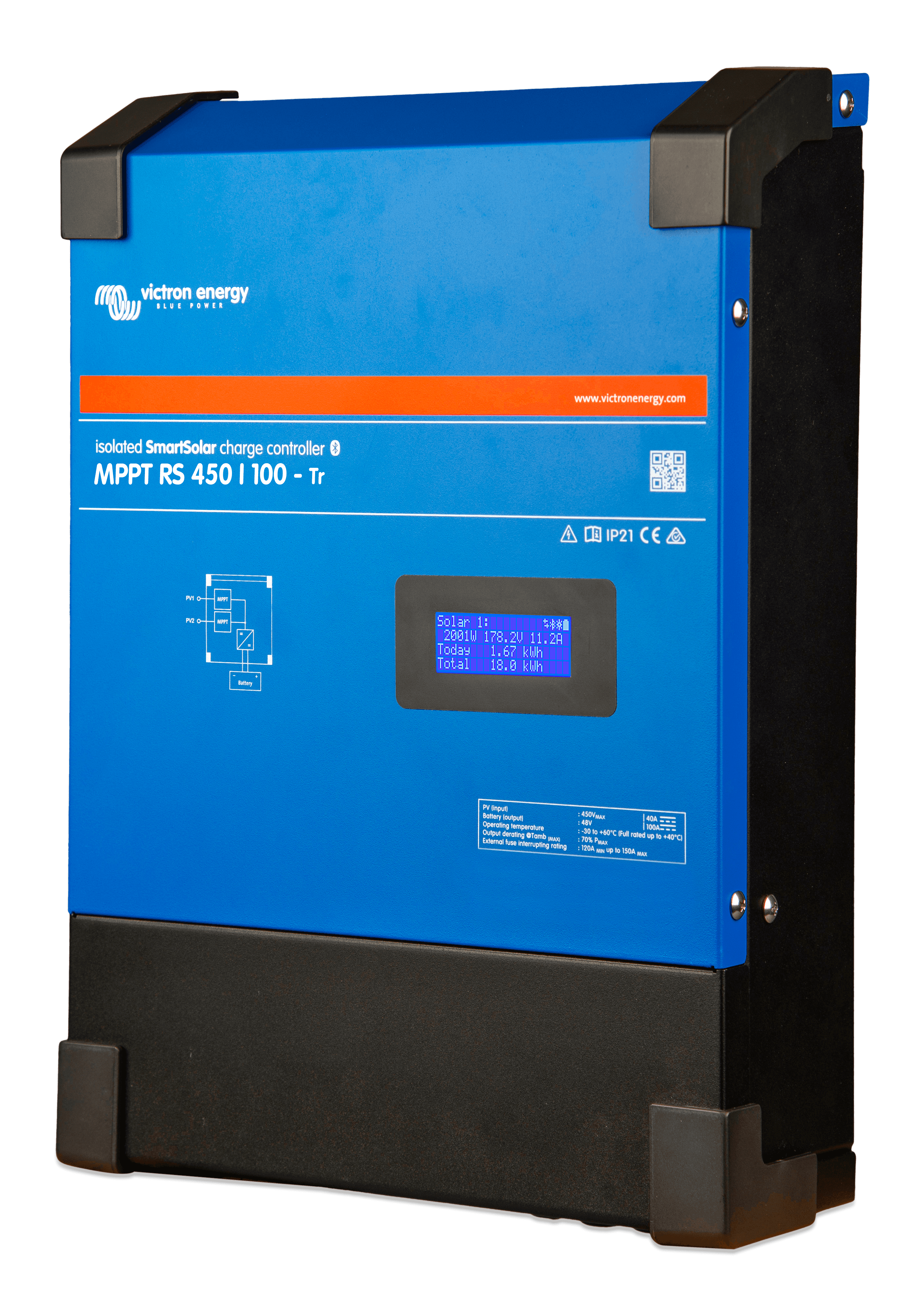

SmartSolar MPPT RS
The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.
Available in a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.
Models:
48 Volt
Year warranty
World-wide support
About this
product
The SmartSolar MPPT RS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.
Available in a 5.76kW and 11.52kW model, features include a wide 65-450 VDC operating solar voltage input, independent tracking inputs, full connectivity, isolated PV connections, display screen, fully programmable battery charging parameters and active cooling. The new metal case design and fully covered electrical connections improve the safety and modernise the presentation in line with the latest suite of Victron products.
MPPT: Ultra Fast Maximum Power Point Tracking
The SmartSolar RS solar charge controller connects to a PV array of between 65 and 450 Volt Voc and will efficiently charge your 48V battery bank with either 100A or 200A.
The charge settings are fully programmable and can be set up for different battery chemistries, like lead-acid, lithium and more.
Setup and monitor with VictronConnect
The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect app. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.

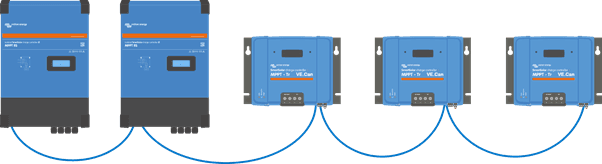

Daisy Chain Additional Units
The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable.
When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).
Remote Monitoring and Control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.
If your installation is connected to a GX device and the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free.
For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

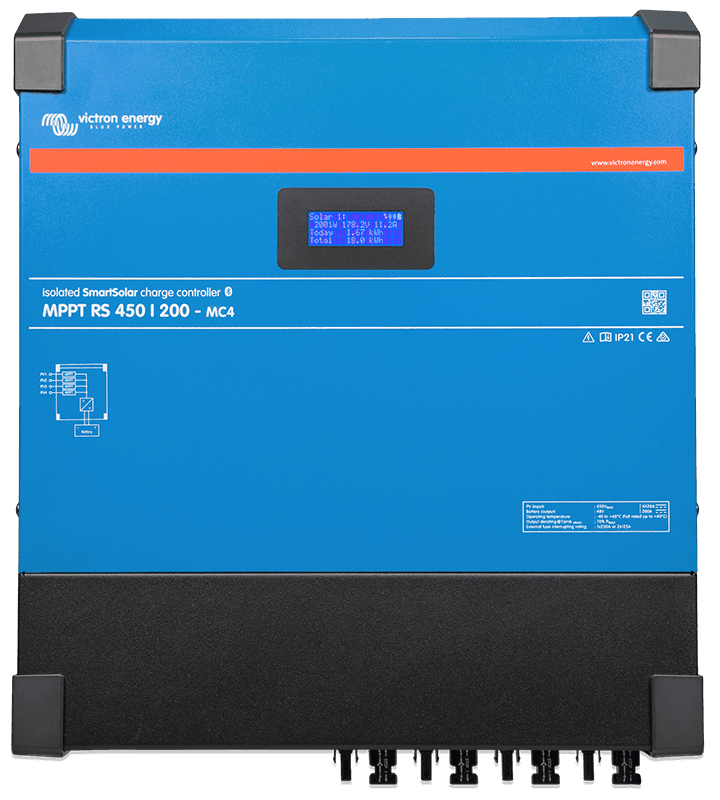

SmartSolar Display

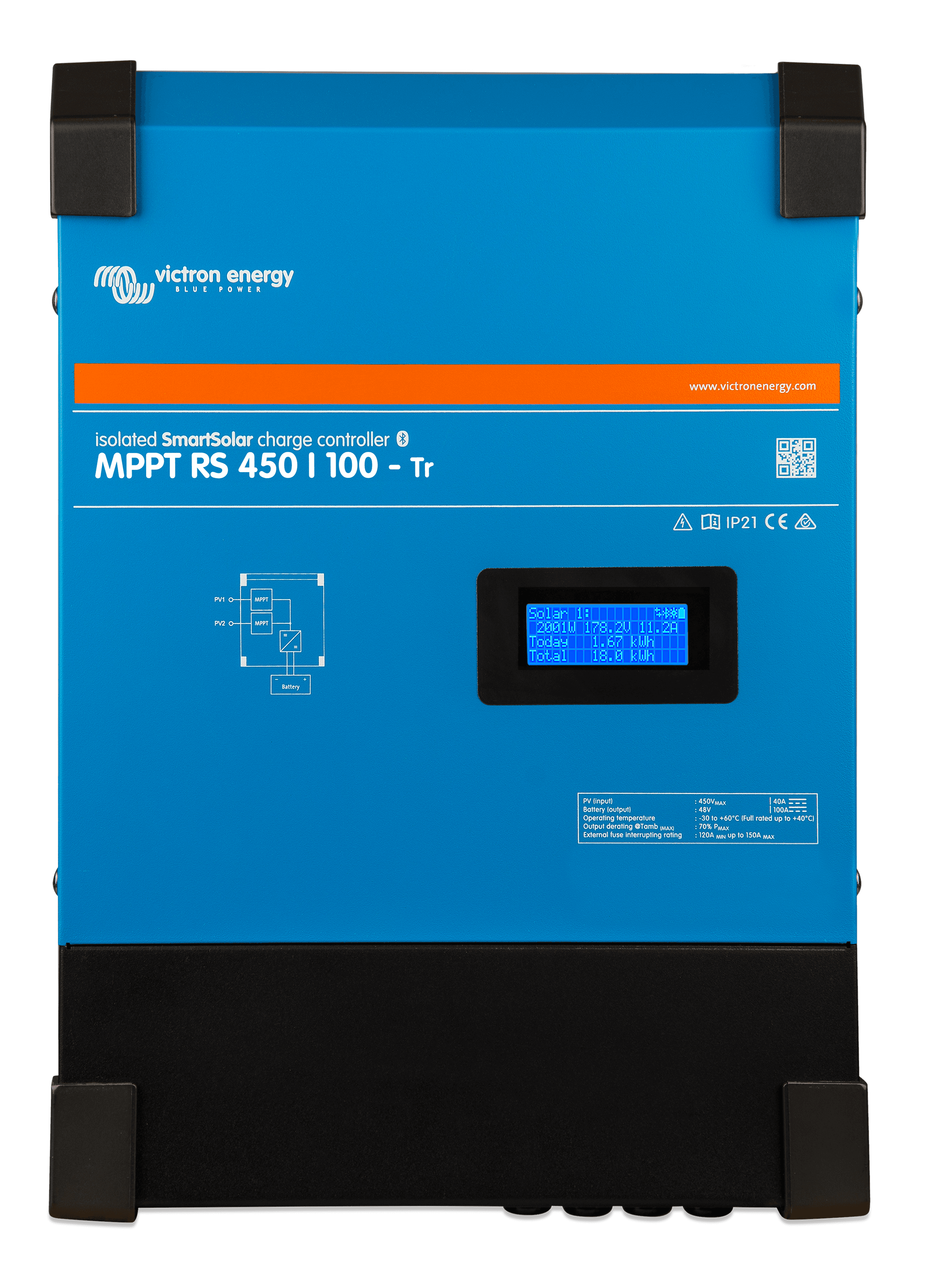

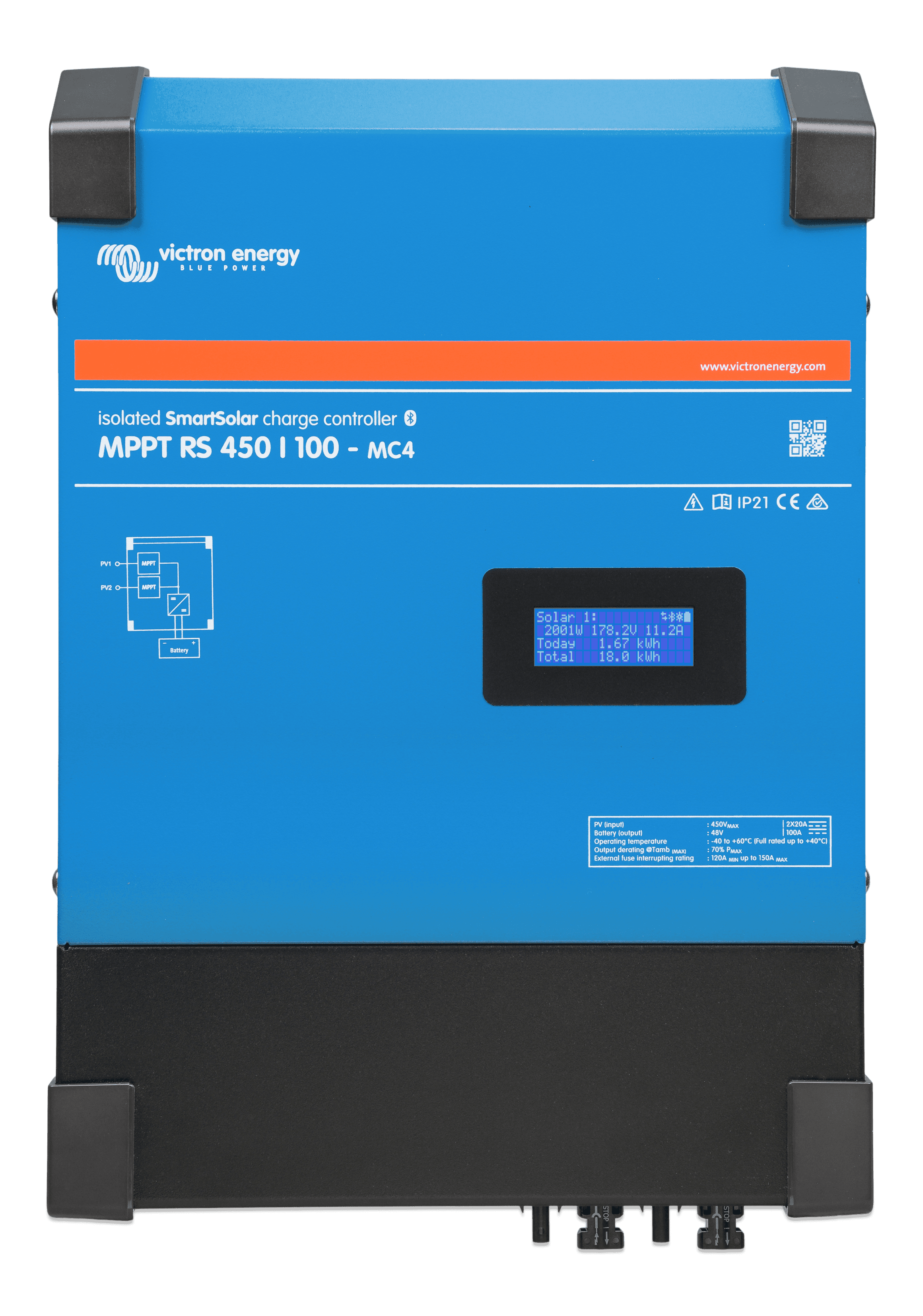

The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both array’s individually including instantaneous and total figures and unit status including any possible error codes.

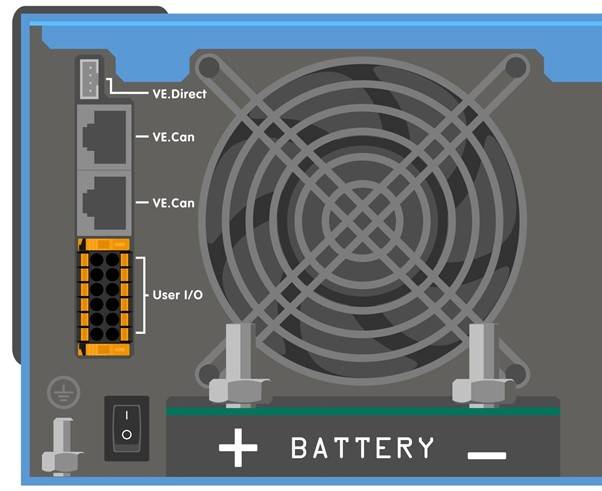

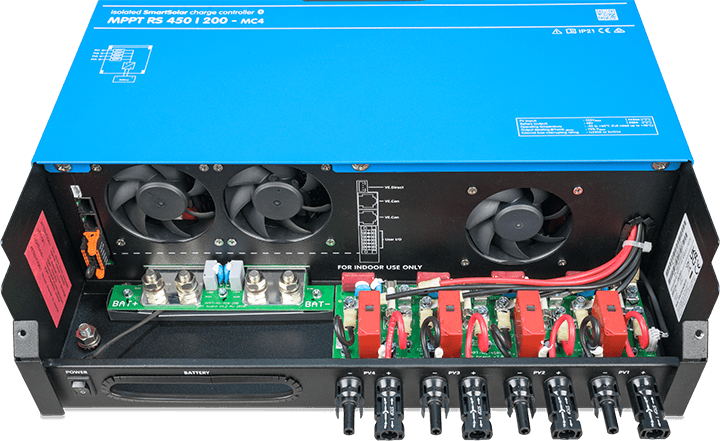

I/O Connections
The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.
Downloads
and support
Datasheets
- SmartSolar MPPT RS.PDF
Manuals
- Pre-RMA bench test instructions (PDF).PDF
- VictronConnect Manual (HTML5).HTML
- VictronConnect Manual (PDF).PDF
- SmartSolar MPPT RS (HTML5).HTML
- SmartSolar MPPT RS (PDF).PDF
Enclosure Dimensions
- SmartSolar MPPT RS 450/200-MC4.PDF
- SmartSolar MPPT RS 450/200-MC4 (3D).PDF
- SmartSolar MPPT RS 450/200-MC4 (stp)
- SmartSolar MPPT RS 450/100-MC4.PDF
- SmartSolar MPPT RS 450/100-MC4 (3D).PDF
- SmartSolar MPPT RS 450/100-MC4 (stp)
High Quality Photos

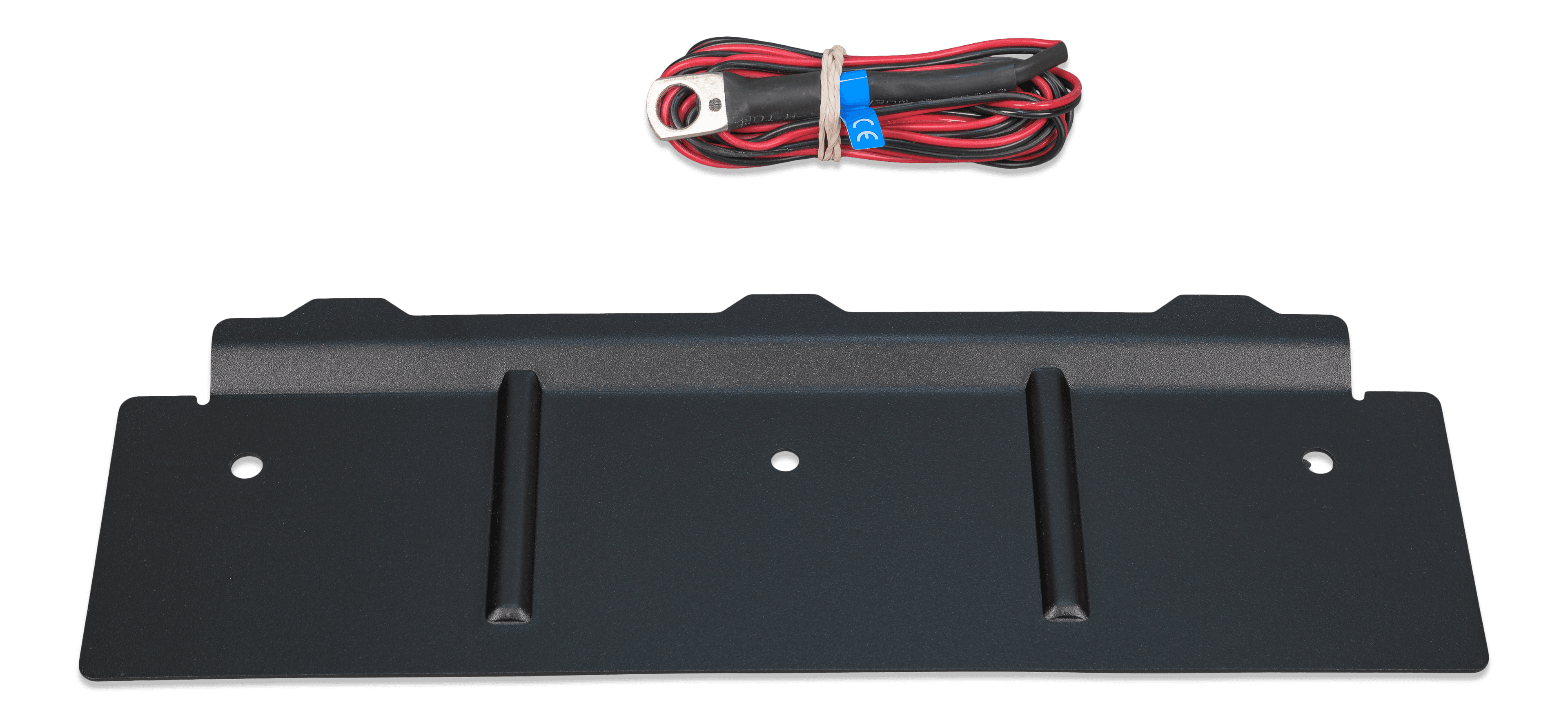

- SmartSolar MPPT RS 450/200-MC4 (mounting plate)

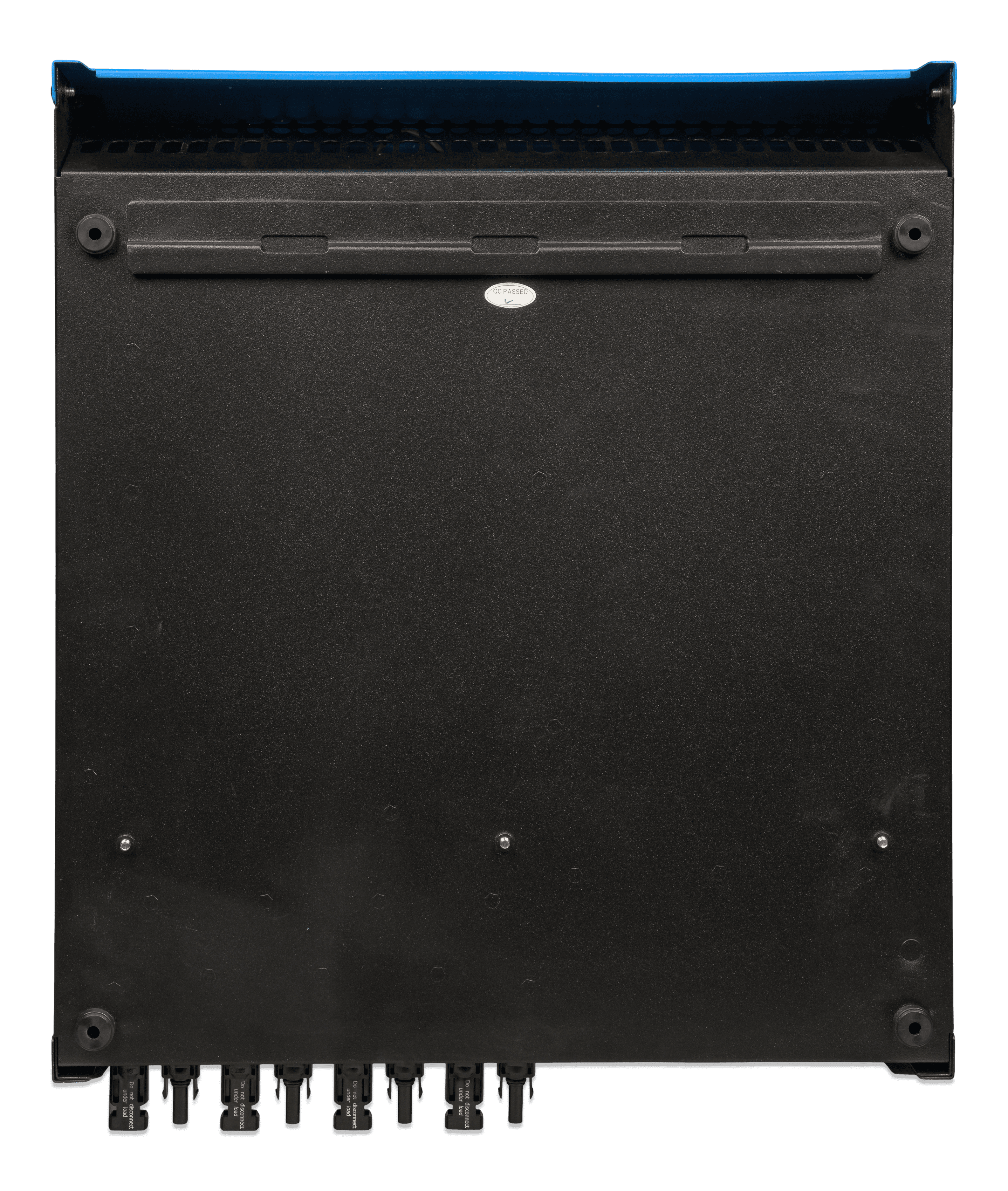

.PNG - SmartSolar MPPT RS 450/200-MC4 (back)

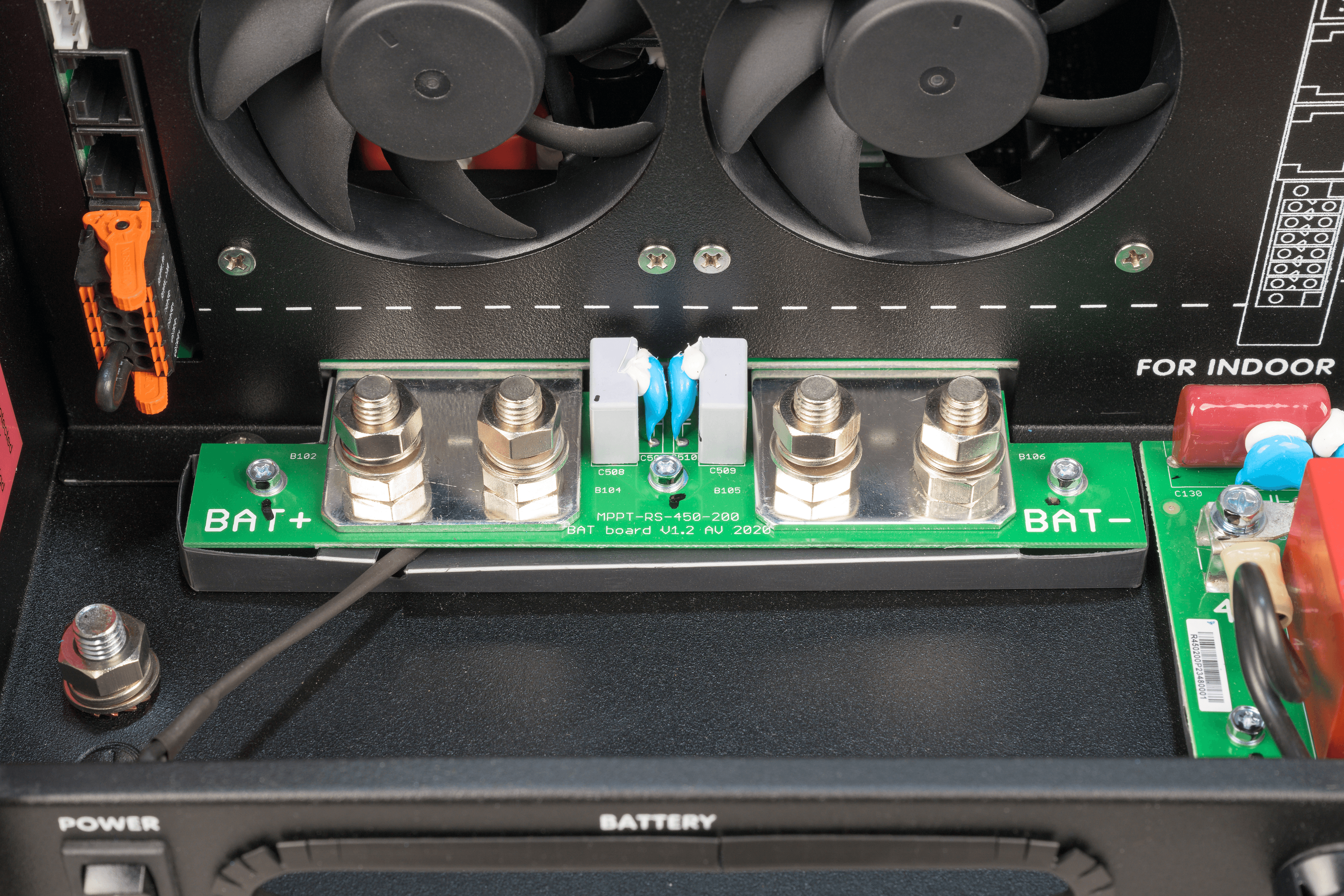

.PNG - SmartSolar MPPT RS 450/200-MC4 (batt)

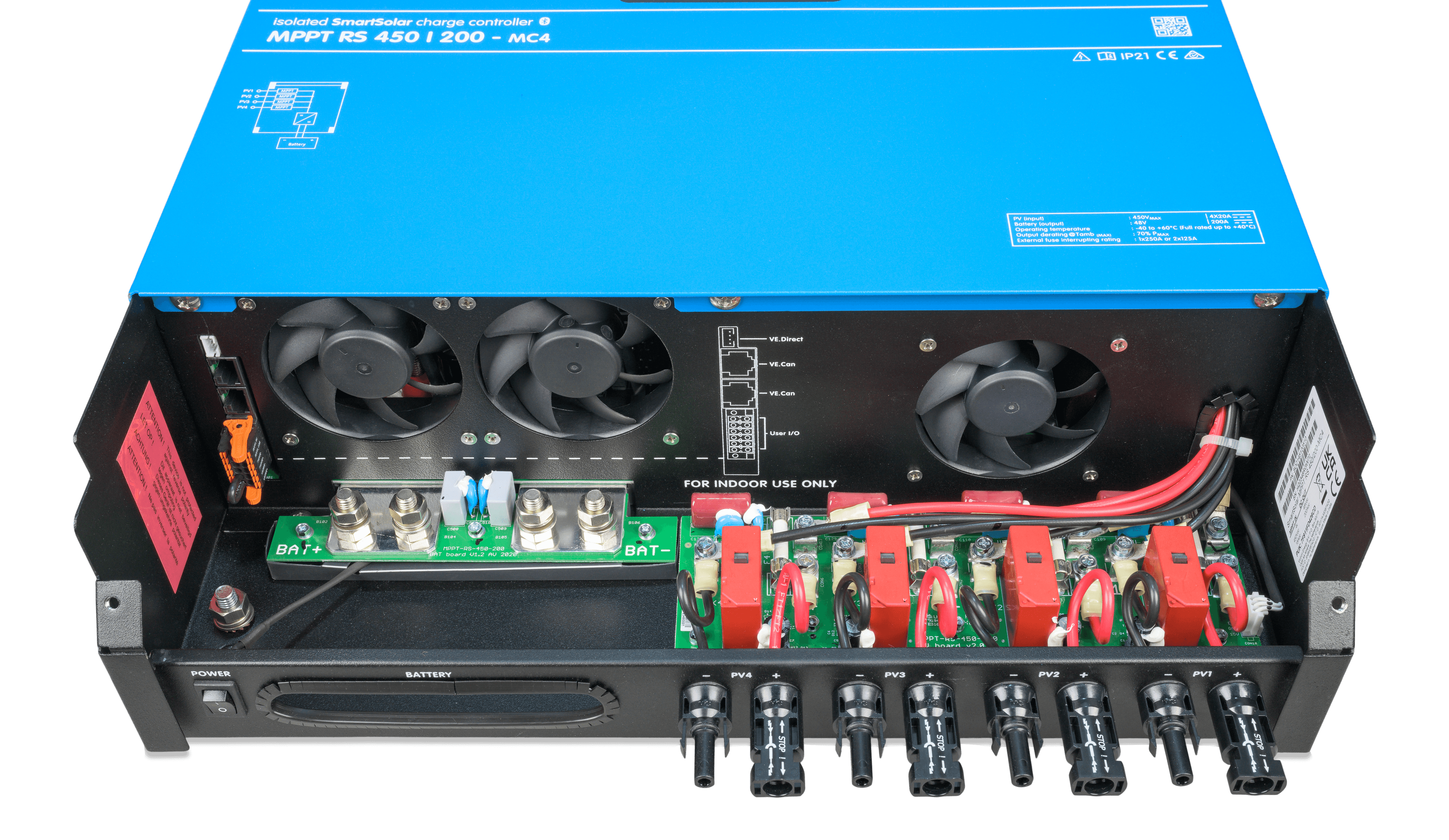

.PNG - SmartSolar MPPT RS 450/200-MC4 (conn)

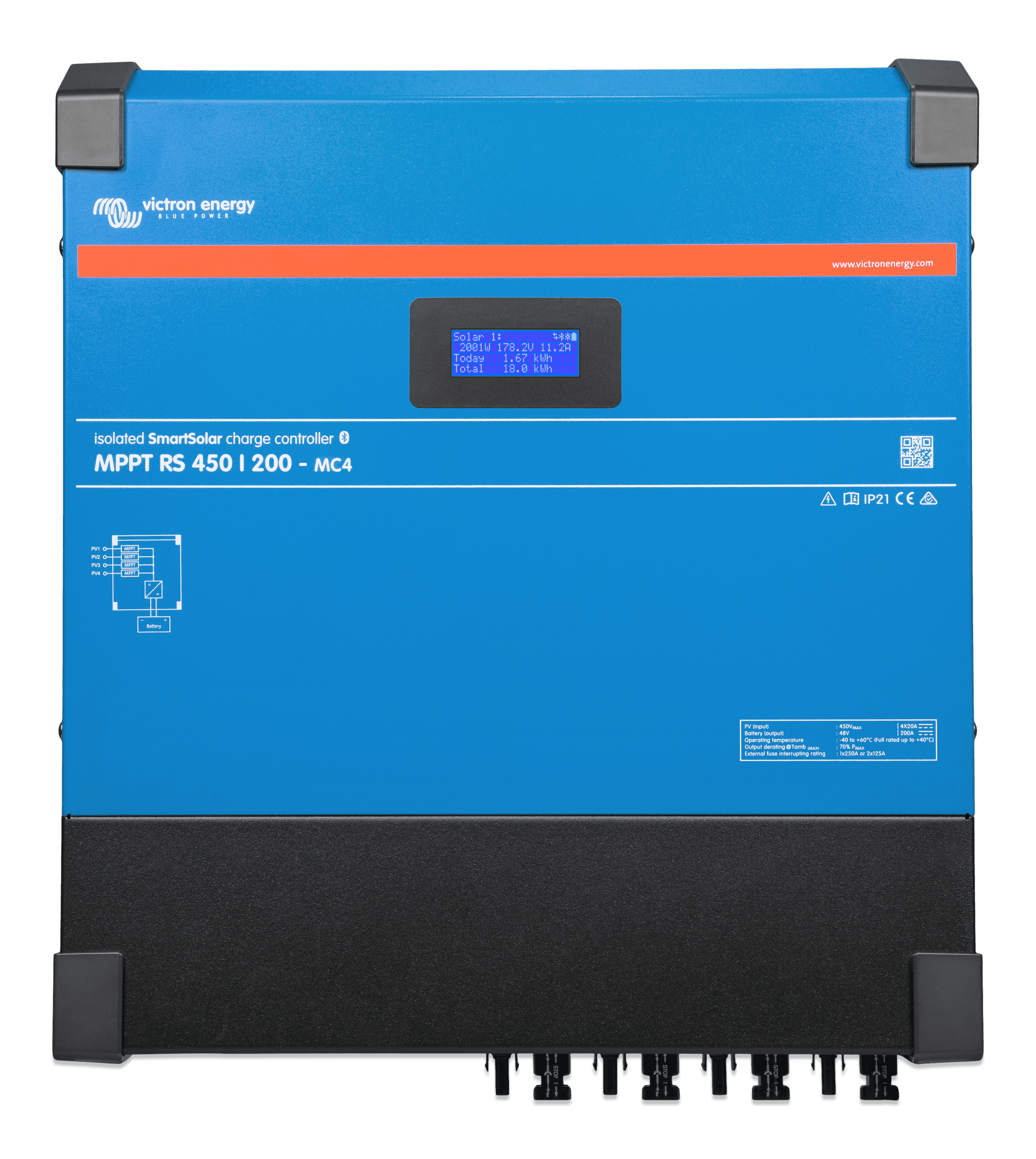

.PNG - SmartSolar MPPT RS 450/200-MC4 (front)

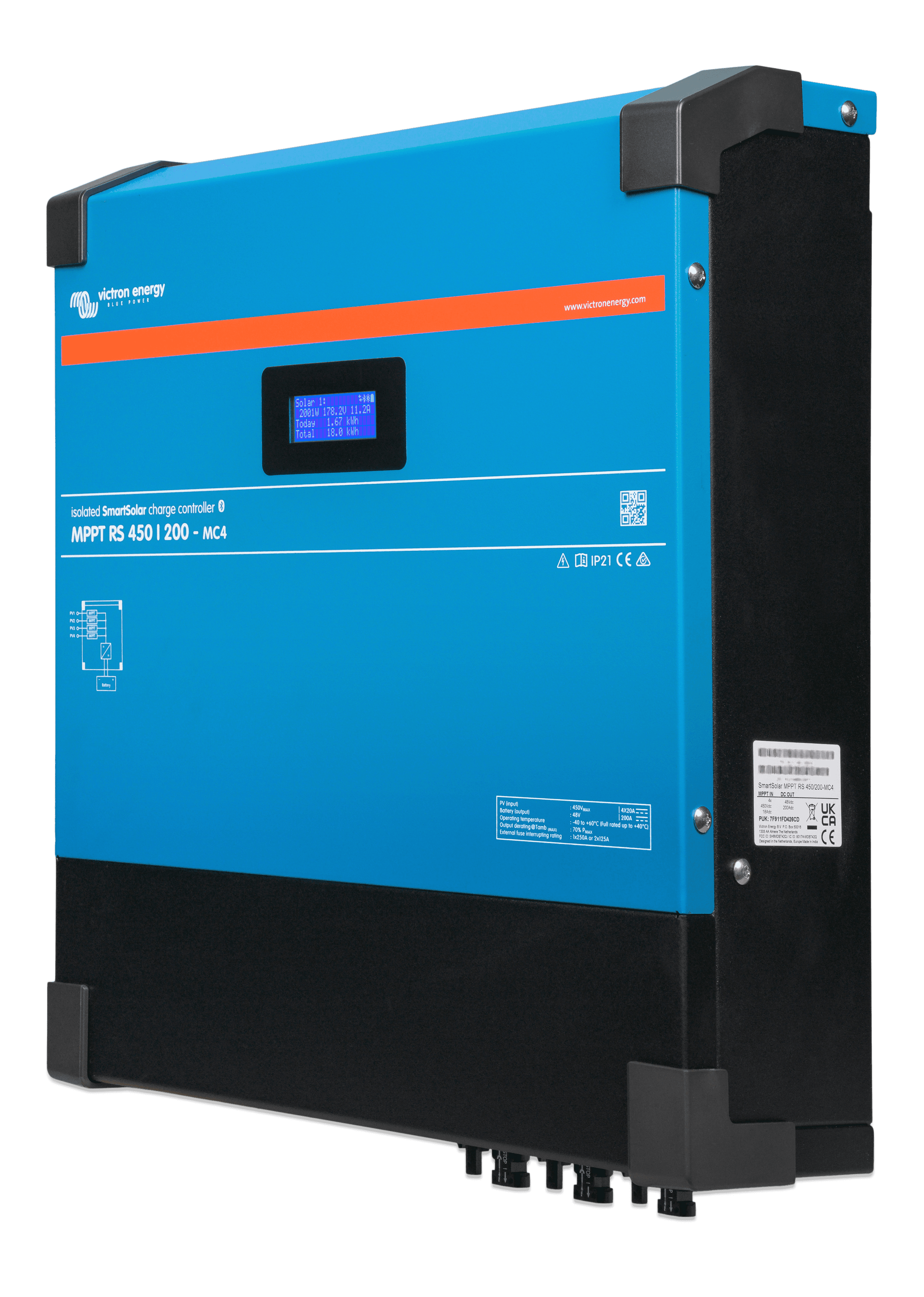

.PNG - SmartSolar MPPT RS 450/200-MC4 (left)

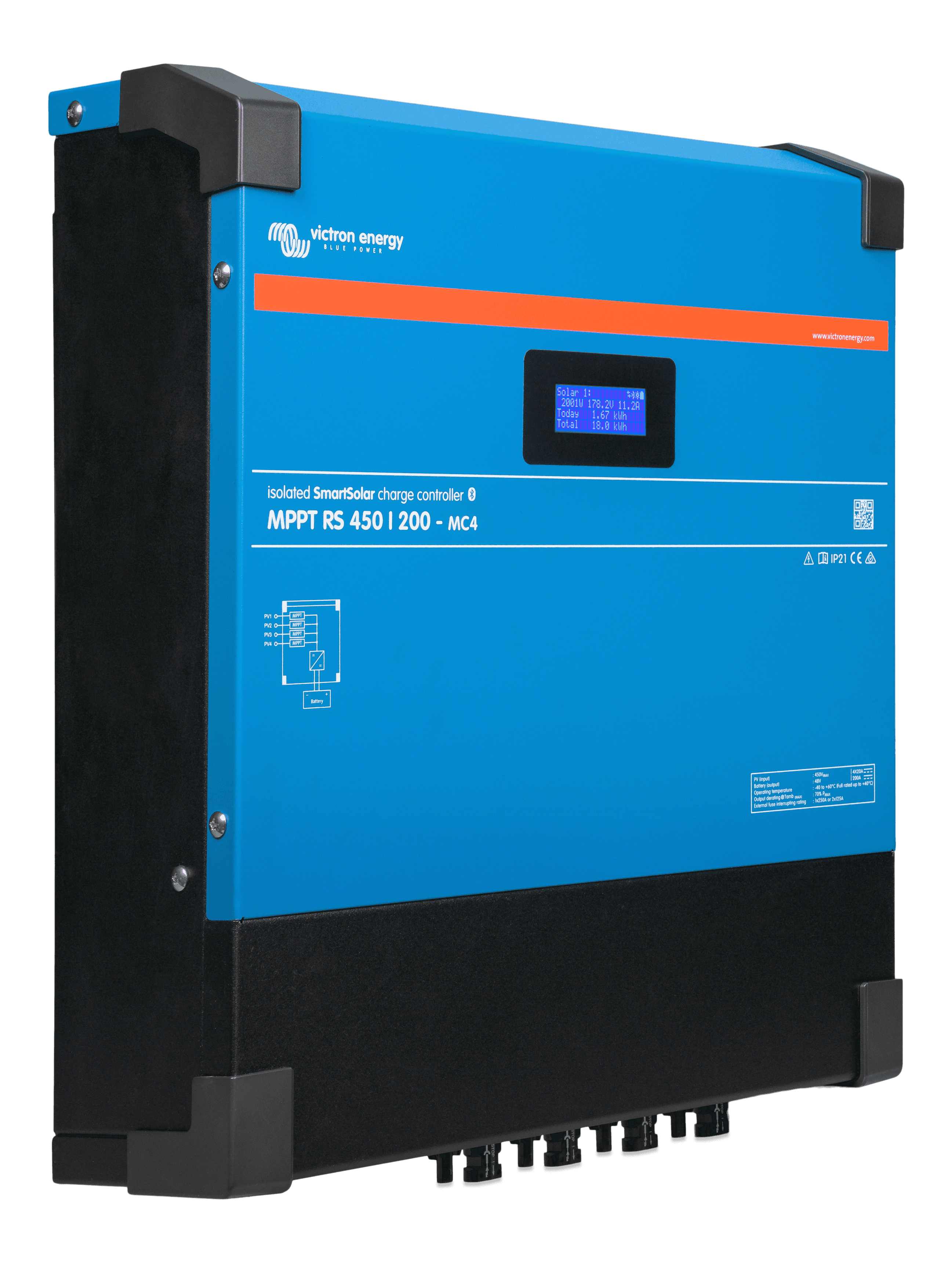

.PNG - SmartSolar MPPT RS 450/200-MC4 (right)

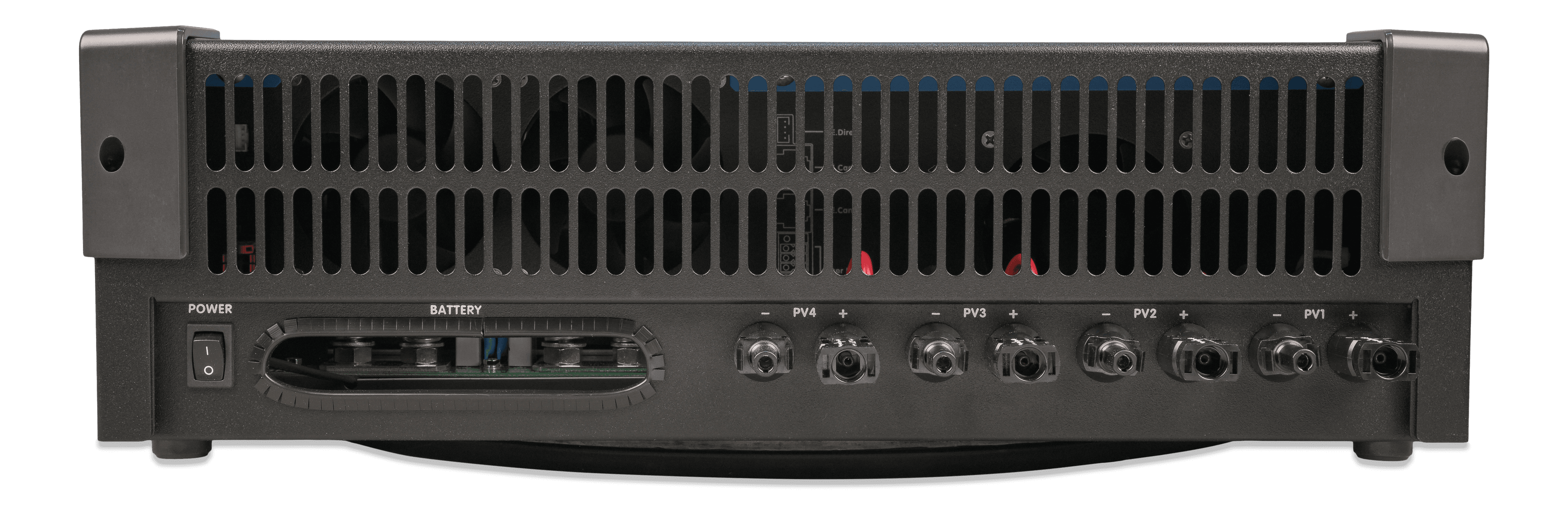

.PNG - SmartSolar MPPT RS 450/200-MC4 (bottom)
.PNG
Videos
- Did You Know - How to create a battery profile for non-Victron batteries?
System Schematics
- Manual & Drawing Multi RS Solar 48 6000 DT Smart LiFePO4 48V 400Ah smallBMS SmartSolar MPPT RS Cerbo GX Touch 50.PDF
Certificates
- ISO9001 certificate.PDF
- Certificate Safety IEC 62109-1 - SmartSolar MPPT RS 450|200-MC4 & 100-MC4.PDF
- Certificate Safety EN/IEC 62109-1 - AS/NZS - SmartSolar MPPT RS 450/100 -Tr.PDF
- Certificate Safety EN/IEC 62109-1 - SmartSolar MPPT RS 450/100-Tr.PDF
- Declaration of Conformity - SmartSolar MPPT RS.PDF
- Certificate Safety IEC 62109-1 - SmartSolar MPPT RS 450/200-Tr.PDF
- Certificate Safety EN/IEC 62109-1 - AS/NZS - SmartSolar MPPT RS 450/200-Tr.PDF
- UK PSTI Statement of Compliance - SmartSolar MPPT RS.PDF
Promo Videos
- VictronConnect
- Brand video
Old User Manuals
- SmartSolar MPPT RS 450-100-Tr & 450-200-Tr.PDF
Configuration and monitoring
VictronConnect
This pocket powerhouse app can do it all. Instantly see key monitoring data and manage devices with simple controls. Configure, check the history, analyse stored trends and more.
